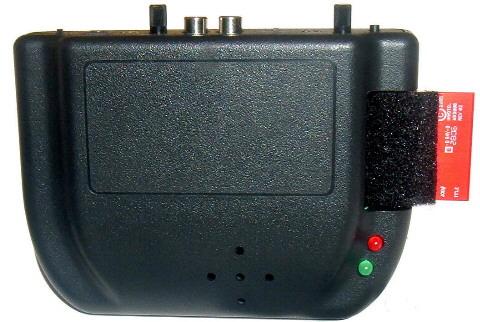

SX9800 digital player/recorder   Pre-loaded- Ready to play out of the Box

The SX9800 is an all digital device for a telephone system MOH jack. It is a cost effective on Hold solution that always plays / repeats and does not breakdown. It is a powerful, easy to use digital player / repeater/ recorder with outstanding audio quality. (If you have regular 1, 2 or 4 line telephones, and want to use the SX9800 digital player, then you also need one of the MOH adapters: SX1025, SX2010, or SX8500-4 These adapters are fully compatible with SX9800 digital player)

The SX9800 is a state-of-the art  compact digital player / recorder with simple push button record-ability and ease of use. It is designed to provide a continuous-play digital audio system for music/message-on-hold, product/service announcement, background music or any other application requiring high quality audio playback.

Unlike other digital players the SX9800 utilizes “True audio recording” - the voice and audio programs are recorded directly into solid state memory in their natural, uncompressed form providing superior quality voice and music reproduction. Other digital players sample the audio and record it at a reduced rate and can not not reproduce "Hi Fi" audio. In addition The SX9800 has un-restricted recording ability from any audio source such as PC, Mac, iPod, Radio, CD player, etc. in any format e.g. windows .wav, CD, MP3, WMA, even windows media player with SRS surround sound and WOW effects.

The audio program can be loaded into the SX9800 easily via:

• Card Load - by inserting the “True audio card”, a cutting edge, flash technology, stamp sized re-record-able Flash card

  a pre-recorded Flash card with “thank you for holding…” and Royalty Free music by professional male and female voice artist talent is included- making the product "Ready to play out of the Box"

or

• Direct Load - a simple push button recording from any audio source such as a PC speaker jack, CD player, radio, tape, DVD player, iPod or MP3 player, etc.

  Just connect the SX9800 to any audio source with the provided audio cord and press the REC to record any thing you like.

Microphone/Headset: using this option you can record your voice into SX9800, this option is simply inserted into a jack on the device. The recording can be done by just pushing one button on the SX9800; the rich sounding microphone allows full user voice record-ability. The SX9800 can even record from multiple sources at the same time, a PC, CD player, iPod or other audio source may be connected to its “Audio IN” jack so that audio can be recorded as a "background" while microphone voice recording is taking place.

The SX9800 player/recorder plays and repeats the music/message on hold directly from the Flash card so there is no extra loading to internal memory. It is a flexible and easy to use player with a list of features not found in other players, these include:

• Compact size - only 4" x 4" x 0.9"
• Removable Flash Card- allows updates in a snap
• Zero moving parts - 100% digital with no built-in CD or cassette player to wear and tear
• Zero power storage - message and music are retained all the time in flash memory during  power outage with out any battery back up
• Automatic repeat at power up - message playback automatically begins/resumes when power is restored without pressing any buttons
• Automatic repeat at end of recording - message repeats immediately no matter what the length is
• All-solid-state design - no mechanical moving parts at all
• Consistent audio output with absolutely no degradation in the sound quality throughout the product’s life
• Highest level audio quality and fully maintenance free
• up to 34 minutes of audio recording capability (depending on the Flash card model)
• RCA 8 ohm output & RCA 600 ohm output
• Audio volume control with 1000 milliwatts of power-good for any type of phone
• Tone control [This makes the audio sound much better on some phone systems. It controls the frequency of the audio playback and it can make it sound richer with super BASS].
• Multi color LED status indicators
• Dual Banks - there are 2 Banks to play/record into which allows a second bank to hold recordings for “Holidays”, “special” sales/events, etc. a switch on the SX9800 controls this function. Using this switch the SX9800 instantly starts its playback from the 2nd bank. It makes it so easy and convenient during the “holiday times” or anytime a different playback is needed
• CD level audio quality
• Light weight (0.5 pounds) with wall mounting capability

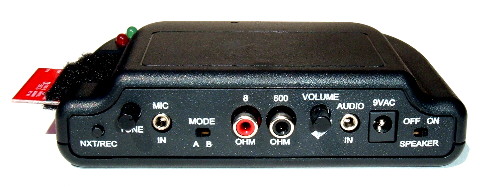

User controls on SX9800:

• 12VDC jack
• Record button tactile switch
• Tone control potentiometer with center tab
• Microphone IN jack 3.5mm
• Bank select slide switch Mode A B (Bank1 - Bank2)
• 8 ohm RCA jack, 600 ohm RCA jack
• Volume control potentiometer with center tab
• Audio In jack 3.5mm
• Speaker transducer ON-OFF

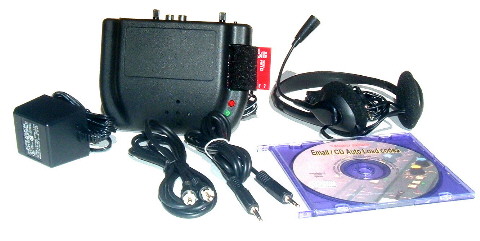

Items included with SX9800:

1. SX9800 digital player/recorder
2. AC power adapter 110V to 12VDC
3. MX9008“True Audio Flash Card” pre-recorded with "thank you for holding..." recorded with professional voice talents - Royalty Free - re-record-able
4. RCA to RCA audio cord 6 feet long
5. 3.5mm male to 3.5mm male audio cord 6 feet long
6. User’s manual

Extra (optional) items available for SX9800:

Blank MX9008 Flash Card ($25)

Microphone/headset: Stereo Headset with adjustable microphone with volume control ($35)

Custom productions - available via a network of professional message on hold companies and recorded with professional voice talents - "Royalty Free" -provided to you with via email (MP3 file) or CD or Flash card for an easy Flash card change.

5 year manufacturer  warranty    Made in USA
